Shaking table is a gravity separator machine that can separate gold, tin, tungsten, lead, manganese, tantalum, chrome and so on precious metals, nonferrous metals
Shaking table is mainly used to make separations based on the difference of specific gravity of feed materials, reciprocating asymmetrical movement and the stratification performance of the inclined table surface in the lateral water flow with obvious zone of the minerals with different specific gravities on the table. High quality of concentrates produced, convenient operation, adjustable. The shaking table is widely used in the selection of tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, limonite and coal.
Structure
Technical Parameter
| Model No | Unit | 6s | LY3000 | LY2100 | LY1100 |
| Deck size(mm) | mm | 4500*1850*1550 | 3000*1320*1100 | 2100*1050*850 | 1100*500*430 |
| Concentration area | m² | 7.67 | 4.08 | 2 | 0.51 |
| Feeding size (mm) | Coarse | 2-0.5 | 2-0.5 | 2-0.5 | 2-0.5 |
| Fine | 0.5-0.074 | 0.5-0.074 | 0.5-0.074 | 0.5-0.074 | |
| Slime | 0.074-0.037 | 0.074-0.037 | 0.074-0.037 | 0.074-0.037 | |
| Feeding Density | % | 10-30 | 10-30 | 10-30 | 10-30 |
| Capacity | t/h | 1-1.2 | 0.4-1.5 | 0.3-0.8 | 0.05-0.2 |
| Water consumption | t/h | 0.7-1 | 0.3-1.5 | 0.2-1 | 0.1-0.5 |
| Stroke length | mm | 16-22 | 6-30 | 12-28 | 9-17 |
| Frequency | t/min | 220 | 210-320 | 250-450 | 280-460 |
| Horizontal slope | ° | 0-10° | 0-10° | 0-10° | 0-8° |
| Motor power | kw | 1.1 | 1.1 | 1.1 | 0.55 |
| Dimension | mm | 5630*1850*860 | 4130*1680*860 | 3040*1050*760 | 1530*500*660 |
| Voltage | v | 380V/50Hz/3 phase | |||
Separtion Principle
Shaking table mineral separation is an inclined table, the combined action of the symmetrical reciprocating motion of a mechanical slab and the flow of water on a thin inclined plane, causes loose layering and zoning of ore particles on the table surface, thereby causing the mineral separation process to be carried out according to different densities.
[Types of gold shaking tables] seated table and suspended table; single-layer shaker and multi-layer shaker; coarse particle (2~0.5mm), fine gold (0.5~0.2mm); rp4 shaker table, 6-s shaker; industrial shaker table, mini gold shaker table, lab shaker table, portable shaker table; etc.
[Table surface materials] glass-reinforced plastics (glass fiber reinforced polyester resin) and aluminum alloy (laboratory use).
[Gold shaker table for sale] High efficiency, separate the gold concentrate and tailings at the same time. 2. Easy to install, operation, and maintenance 3. Adjustable stroke length and speed 4. Low investment, long service life 5. Flexible and portable.
Features
1.High recovery ratio;
2.High concentration ratio;
3.Easy installation;
4.Simple operation;
5.Deck constructed of fiber glass;
6.Long working life;
7.Adjustable stroke length and speed.

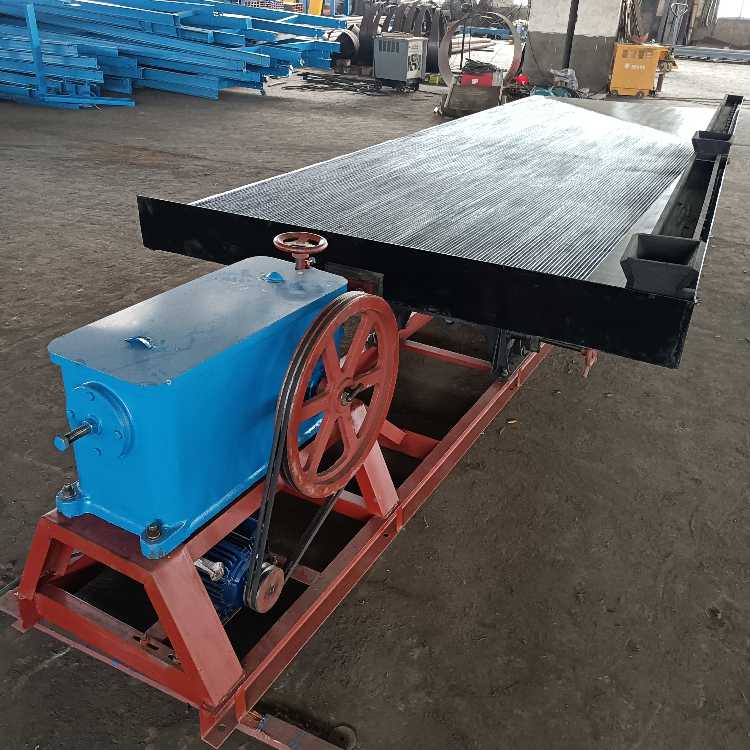

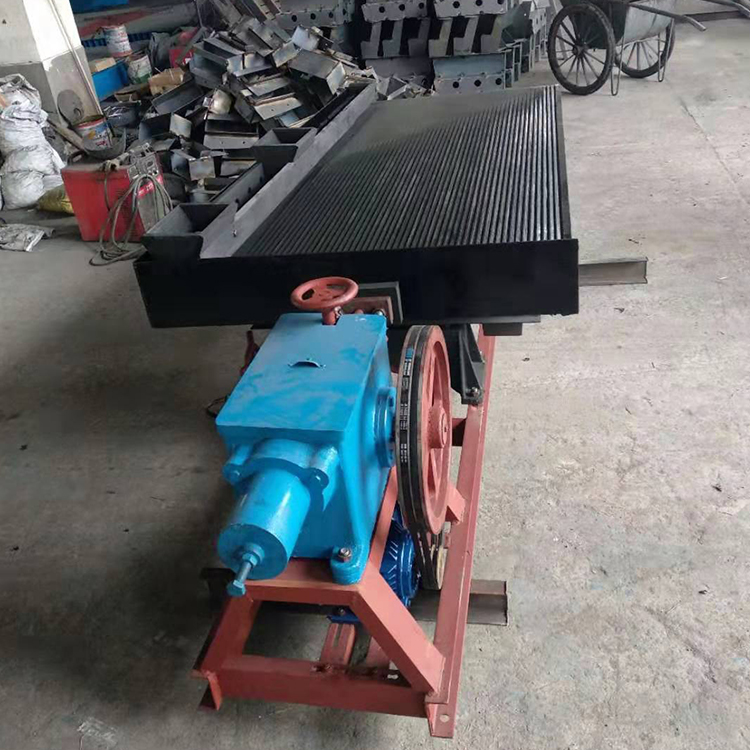

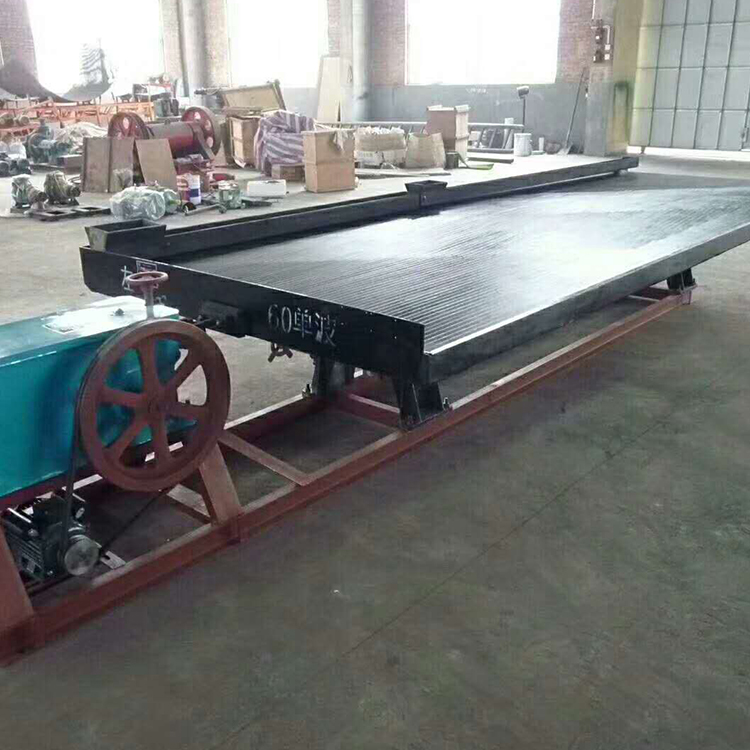

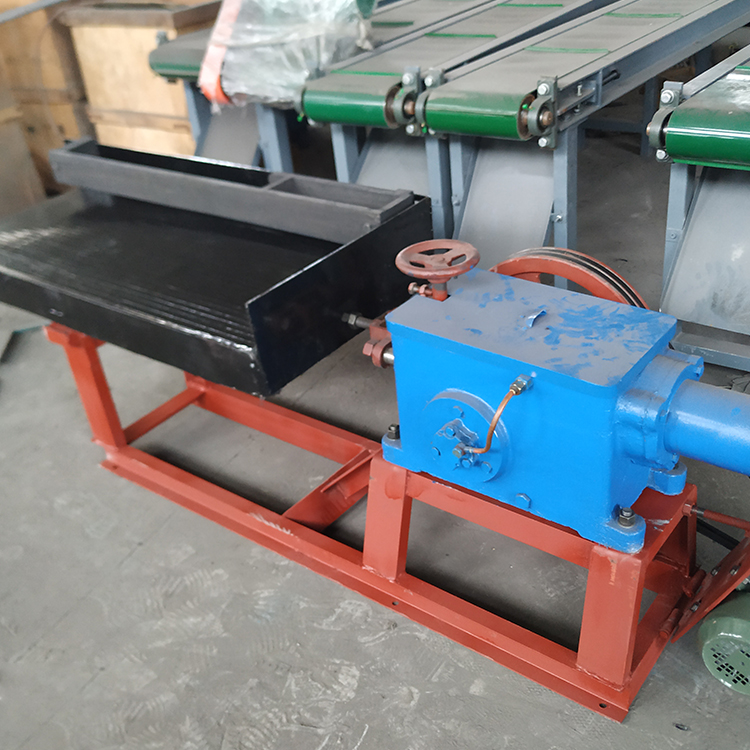

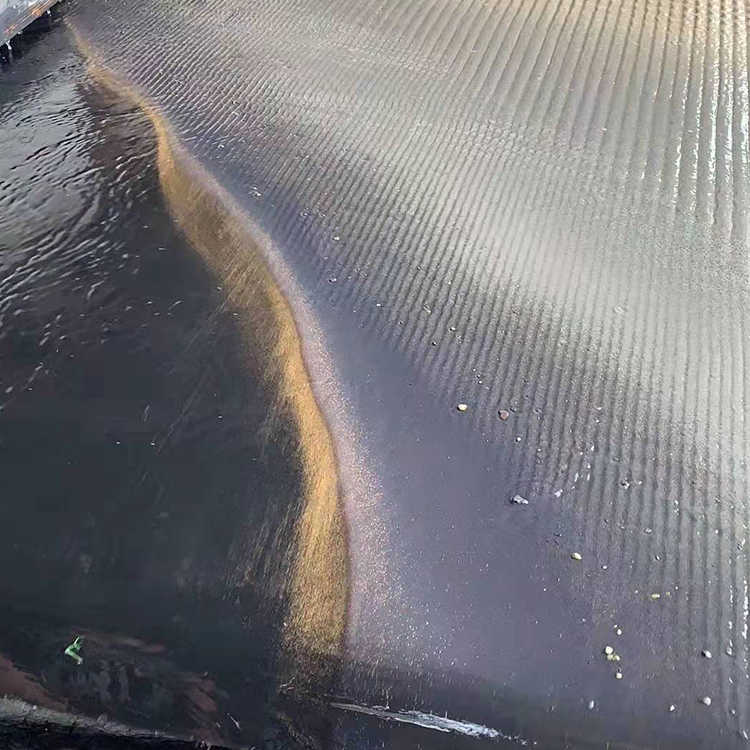

Detailed Picture

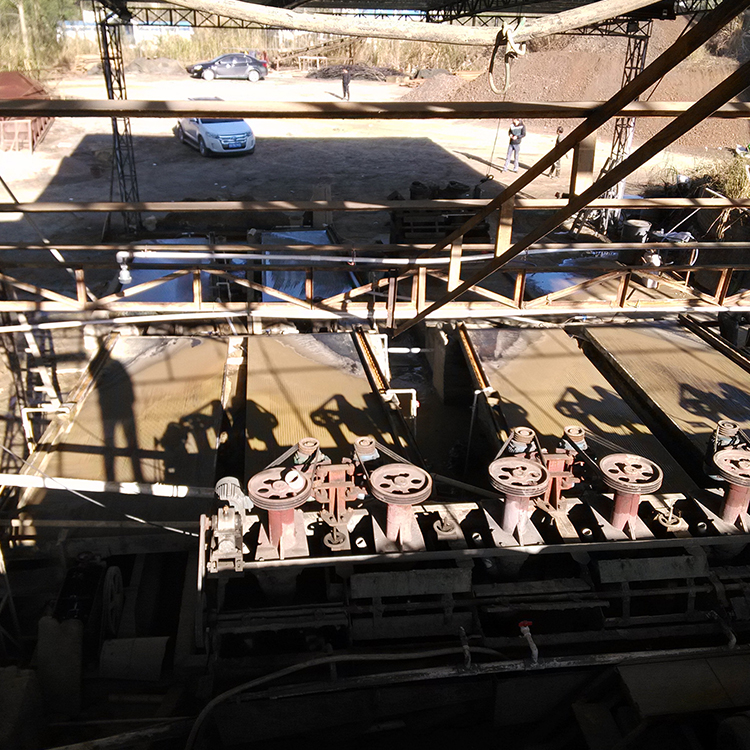

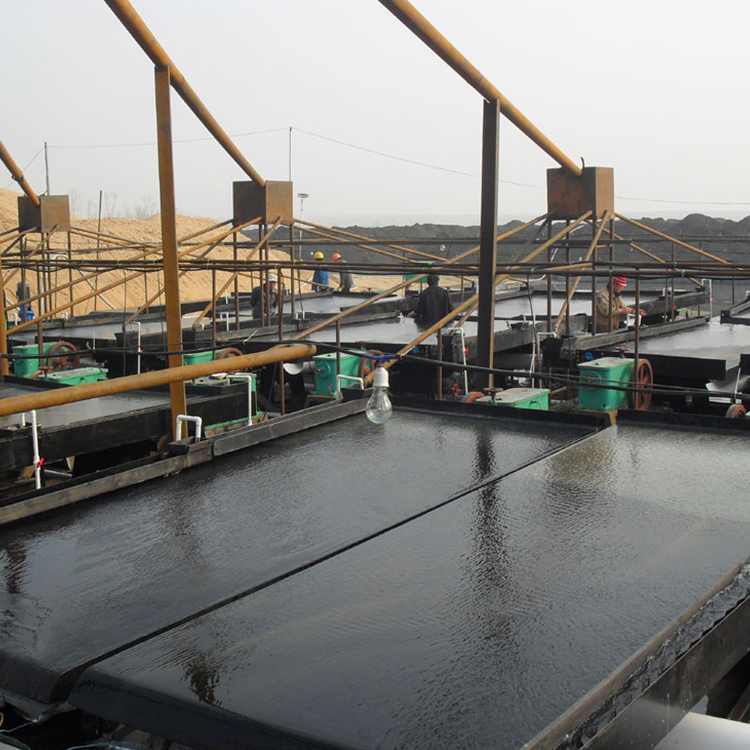

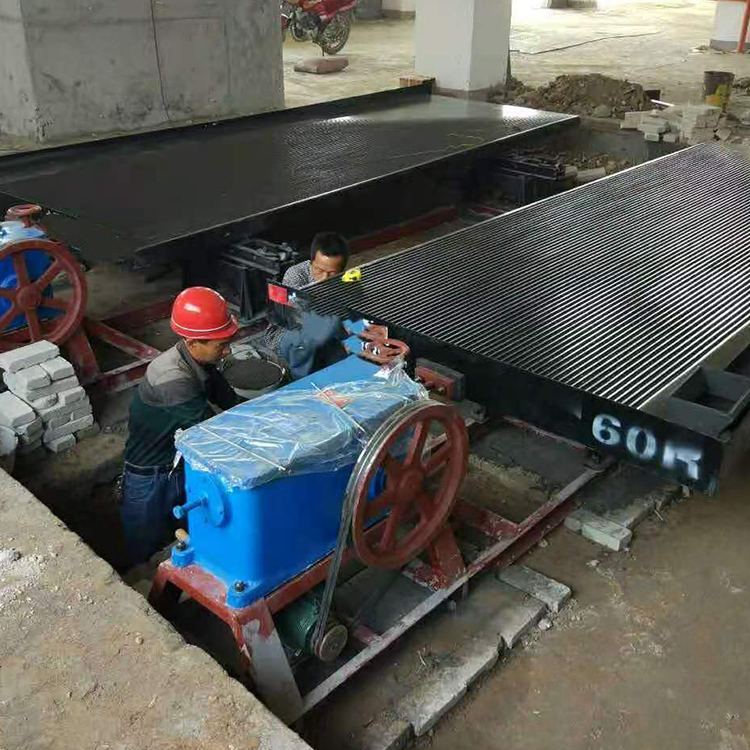

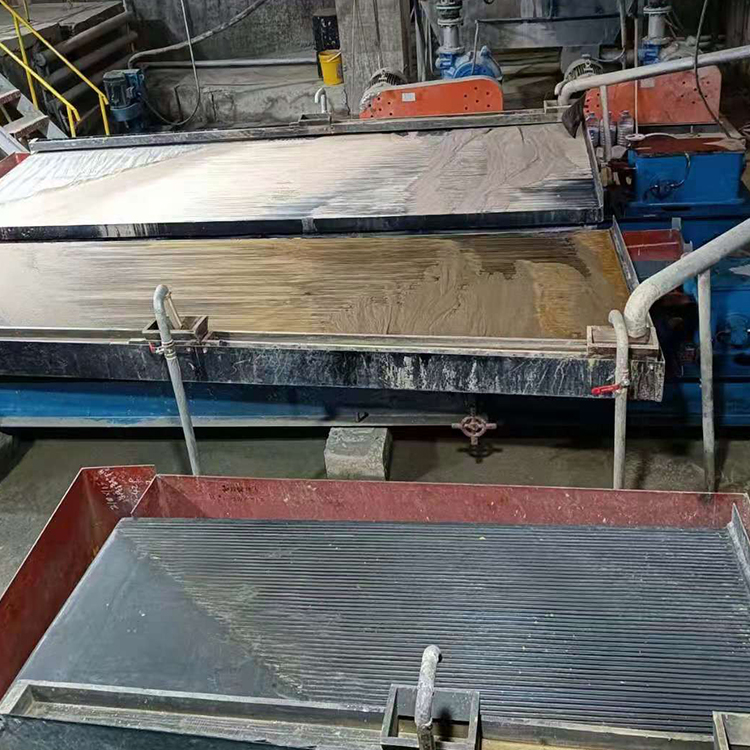

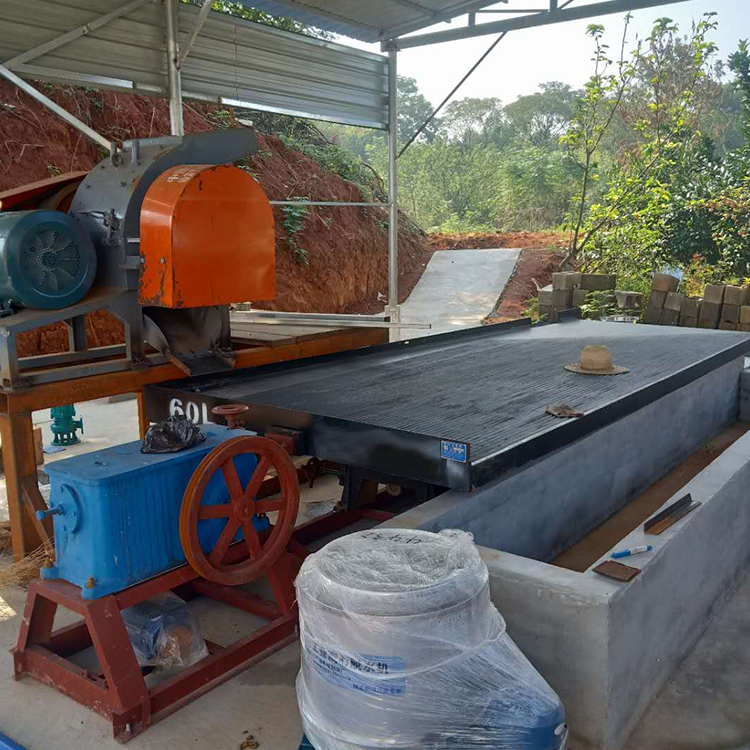

Customer Working Site
