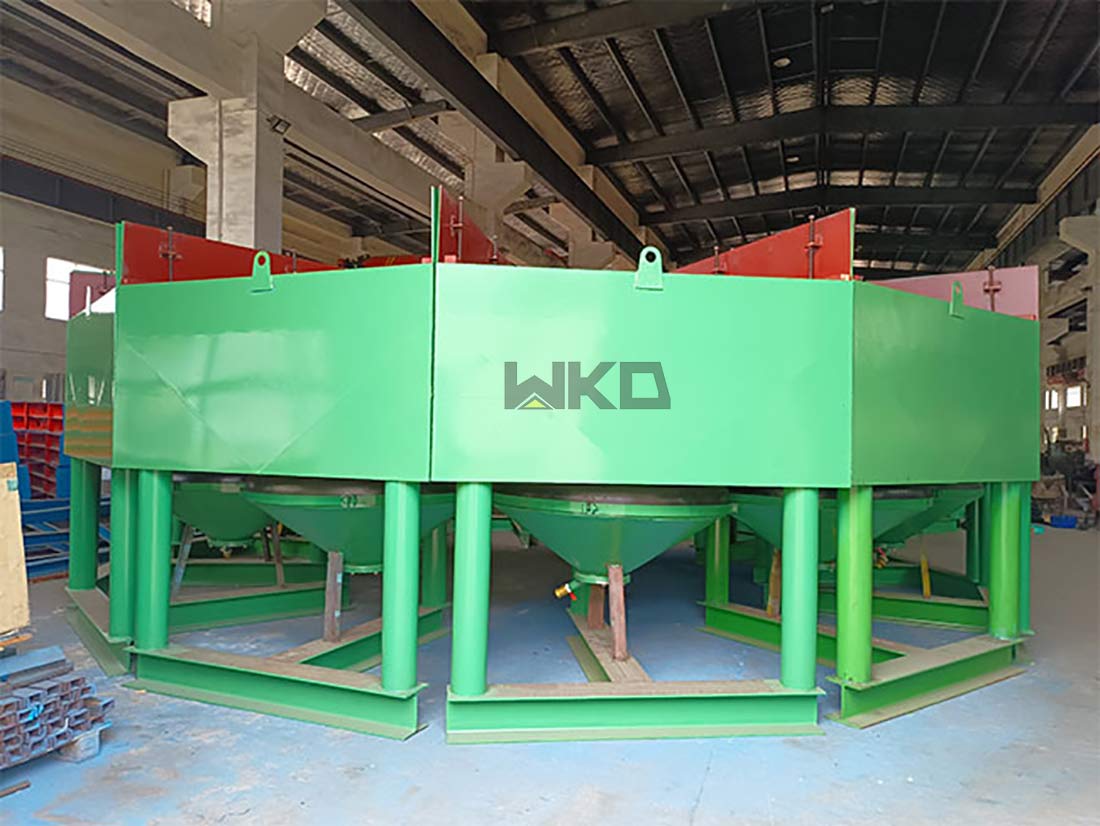

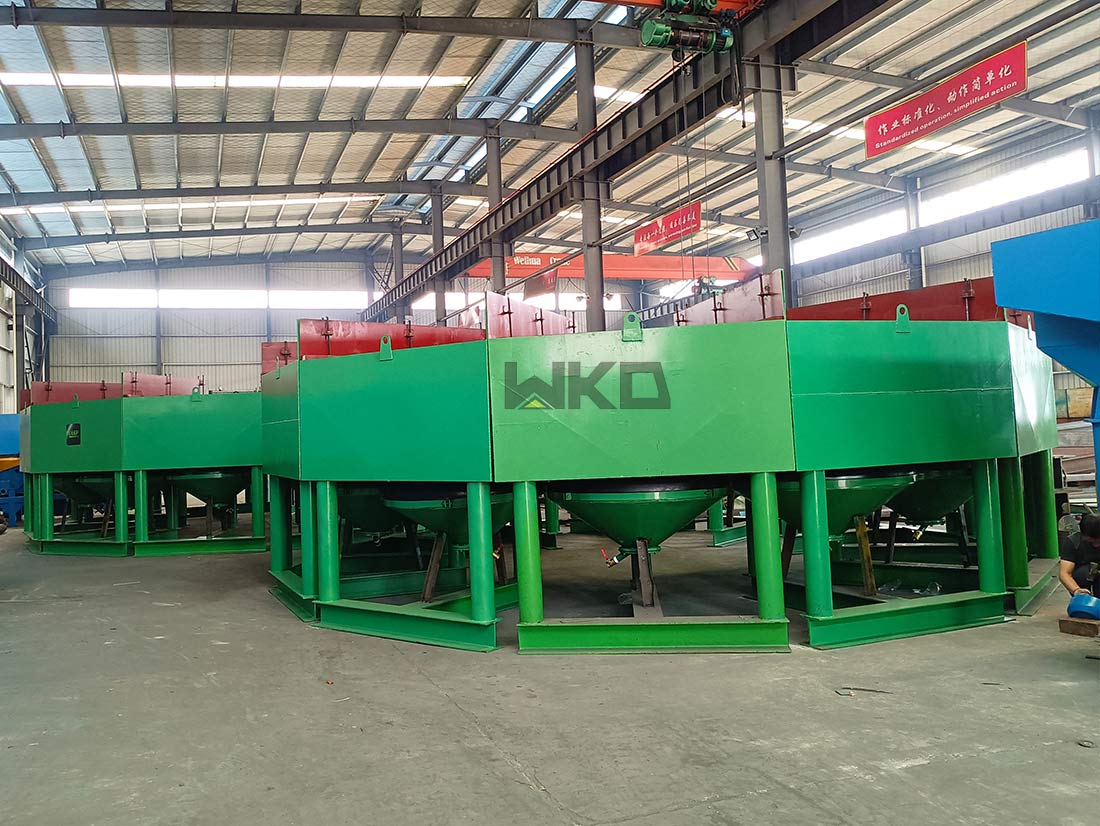

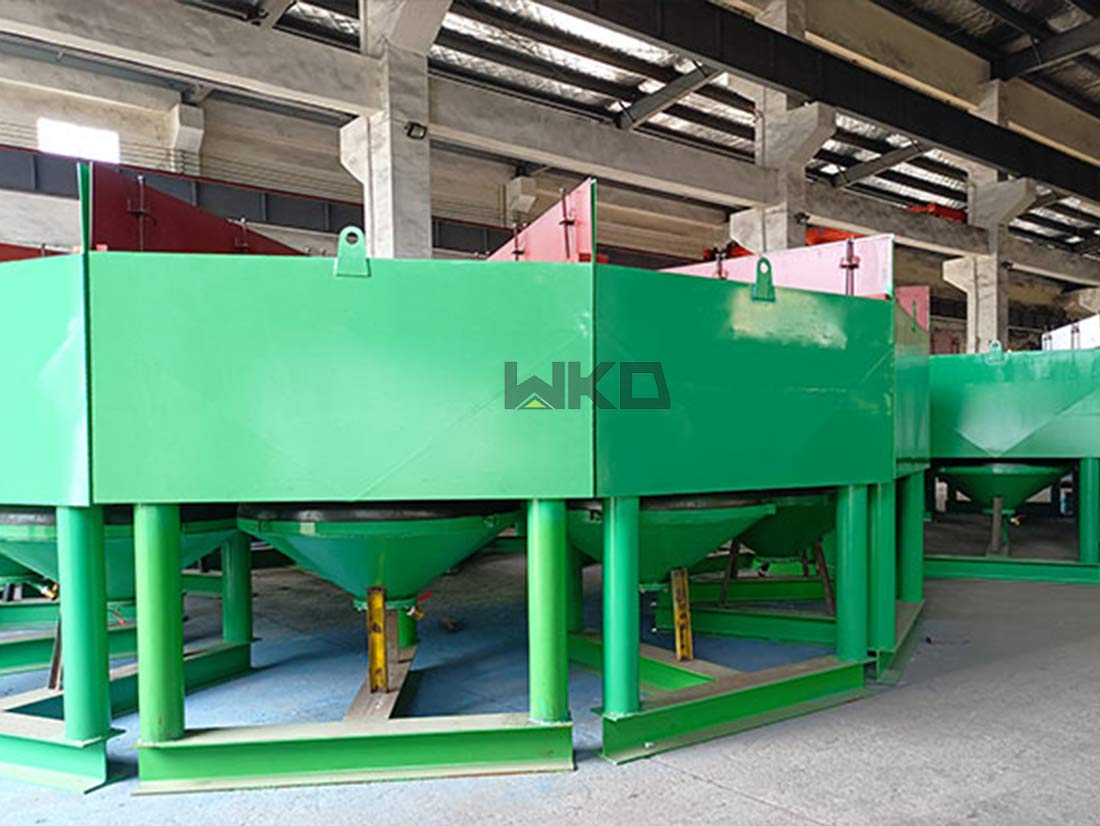

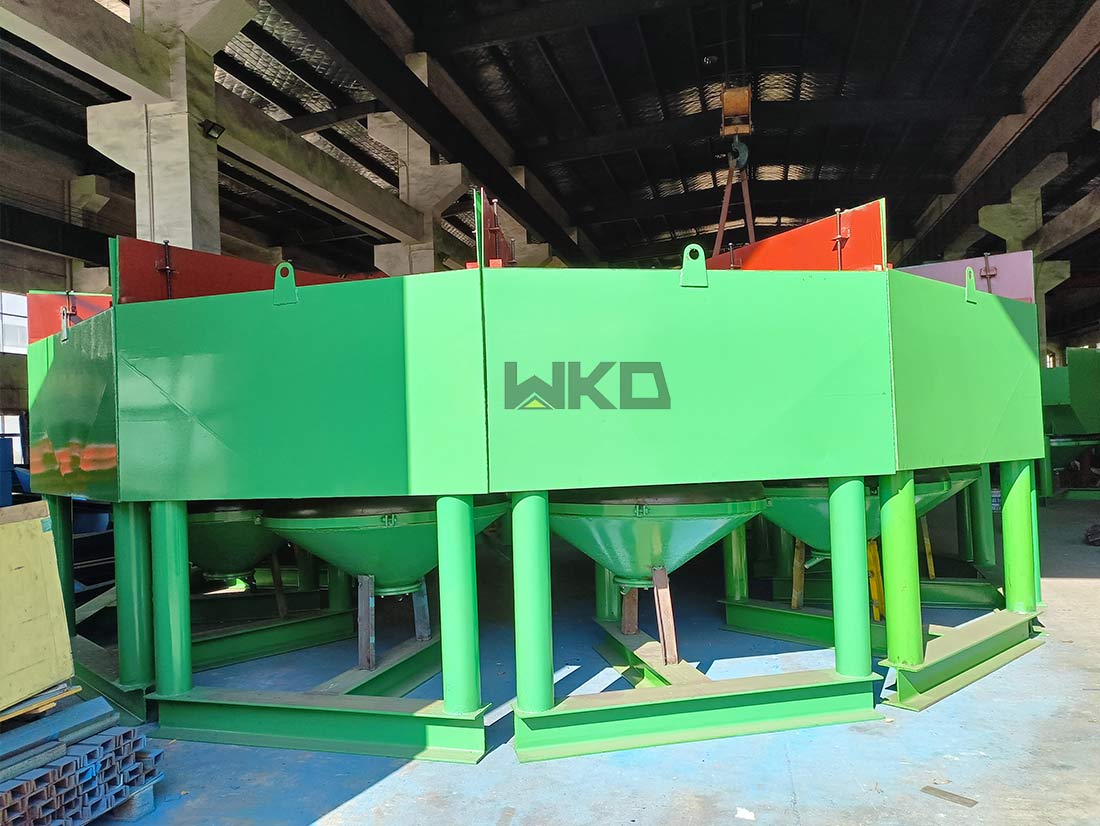

The hydraulic radial jig is a high-performance gravity concentrator that employs a hydraulic pulsation mechanism to ensure effective mineral separation, offering high capacity, low power consumption, and adaptability to both coarse and fine particle sizes
Hydraulic radial jig, also known as a circular jig, is a type of large-scale jigging machine. It mainly consists of two parts: the drive system and the tank. The drive system adopts a mechanical hydraulic mechanism, with power provided by an electric motor. Through a transmission mechanism, the speed is reduced to drive a cam, which pushes the plunger of each main hydraulic cylinder to perform periodic reciprocating motion. Via hydraulic pipelines and various valves, the motion is transmitted to the slave hydraulic cylinders, thereby driving the pulsating up-and-down movement of each jig compartment.
The hydraulic radial jig features a large surface area and high processing capacity. Due to its fan-shaped jigging chamber, it has a compact structure, centralized feed, and occupies minimal space. It is suitable for use on mining vessels. The adoption of hydraulic transmission simplifies the drive mechanism and saves power.
High processing capacity, wide range of treatable particle sizes, and strong adaptability.
Easy installation, simple operation, low maintenance requirements, centralized feed, and improved material settling for higher recovery rates.
Suitable for the beneficiation of minerals such as gold, tin, diamonds, tungsten, manganese, and hematite.
| Model | DYTA7750-3 | DYTA7750-4 | DYTA7750-5 | DYTA7750-6 | DYTA7750-7 | DYTA7750-8 | DYTA7750-9 | DYTA7750-10 |
|---|---|---|---|---|---|---|---|---|
| Jigging Area(㎡) | 9.9 | 13.2 | 16.5 | 19.8 | 23.1 | 26.4 | 29.7 | 3.3 |
| Stroke（mm） | 20.25.30 | |||||||
| Strokes Per Minute | 50-85 | |||||||
| Feed Size（mm） | <25 | |||||||
| Under-screen Water Addition（m³/t） | 1-3m³/ton of ore | |||||||
| Under-screen Water Pressure（Mpa） | >0.10 | |||||||
| Processing Capacity（t/h） | 50-75 | 66-100 | 78-125 | 100-150 | 116-175 | 132-197 | 150-200 | 166-245 |
| Drive Motor（kw） | 5.5 | 7.5 | 7.5 | 7.5 | 11 | 11 | 11 | 15 |
| Hydraulic Power Unit Motor（kw） | 0.55 | |||||||
| Weight（kg） | 6000 | 8000 | 10000 | 12500 | 14200 | 15800 | 17500 | 18000 |
