Laboratory Small Planetary Ball Mill

Laboratory small planetary ball mill is a necessary device of high-tech materials mixing,fine grinding,sample making,new product development and small batch production.

Planetary ball mill can grind coarse particles into micro powders. It can mill the materials from 3~10mm maximum into 0.1~1um minimum powder. Planetary Ball Mill Machine can deal 0.1L to 100L material per time depends on the model choose. Widely applied in industries of chemical, medical, construction, mineral, etc.

Application

Geology and Mineralogy: rock, gravel, sand, minerals

Ceramics: porcelain, ceramics, clay, fire clay

Chemistry: pesticides, fertilizers, salts, inorganic and organic materials

Biology: plants, leaves, freeze-dried samples

Pharmaceuticals: ophthalmologist agents, gels, creams, extracts, drugs, pastes,  tablets

Material technology: pigments, precious materials, new materials, alloys, mechanical alloying

Analysis preparation: spectroscopy, X-ray fluorescence, X-ray structure analysis, chromatography

Main Features

1. Automatic and programmable control with LED display

2. High uniformity and excellent repeat-ability

3. Fast rotational speed, high efficiency and fine granularity

4. Programmable interval and pause times

5. Four samples with different sizes and materials in one experiment

6. Large range of materials available for grinding media

7. Small volume,Complete function

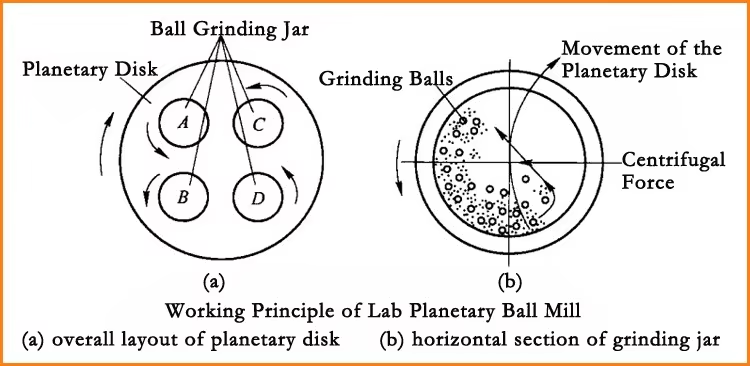

Working Principle

Lab Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.
