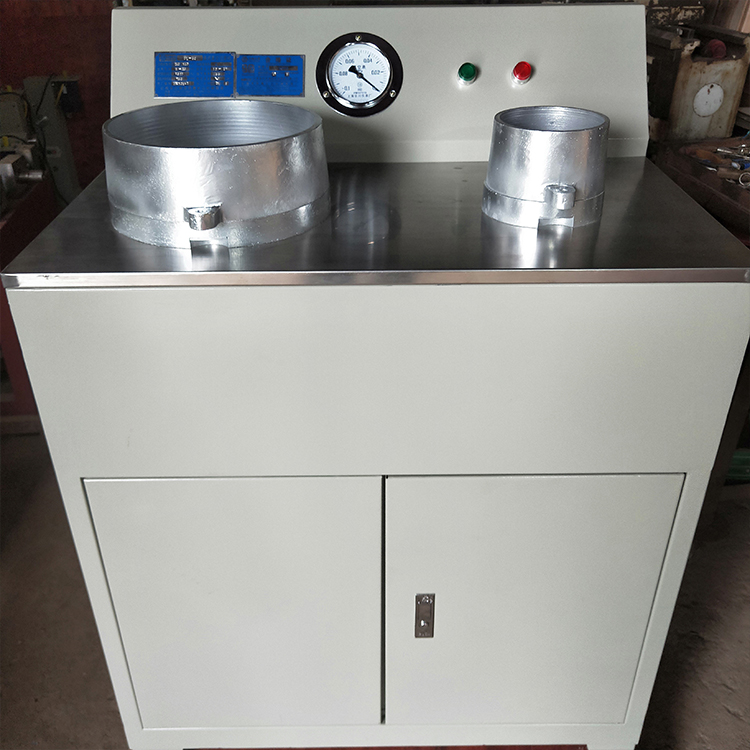

The laboratory disc vacuum filter is a latest lab filter device equipment with both intermittent and continuous working function
The laboratory disc vacuum filter is a latest lab filter device equipment with both intermittent and continuous working function.It is application to labs involving minerals separation, metallurgy, geology, chemical industry, building materials, oil, paper making grand artificial crystal and to the dehydration and solid-liquid separation.
Main Features
1. Simple structure and easy operation;
2. Convenient maintenance and reliable operation;
3. Stable performance, high filtration efficiency, and multi-functional;
4. Particularly effective for difficult-to-filter minerals and low-concentration slurries.
Technical Parameter
| Model No | ZL260/200 | DL-5C |
| Filter Disk Diameter(mm) | Large disk: Φ260mm Small disk: Φ200mm | Large disk: Φ240mm Small disk: Φ120mm |
| Filter Disk Capccity(L) | Large disk: 4.2L Small disk: 2.5L | Large: 3.6L Small: 0.64L |
| Pulp Density | 10-30% | |
| Slurry Partice Size(mm) | ≤0.5mm | |
| Filtering Sample Weight(g) | The net weight of cement pat on large size disk is not more than 500 garms, and the net weight of cement pat on small size disk is not more than 100 garms. | |
| Filtering Time(min) | 5-10 mins for normal materials | |
| Motor Power(kw) | 1.5 | |
| Dimension(mm) | 800*580*1100 | |
| Weight(kg) | 110 | |
