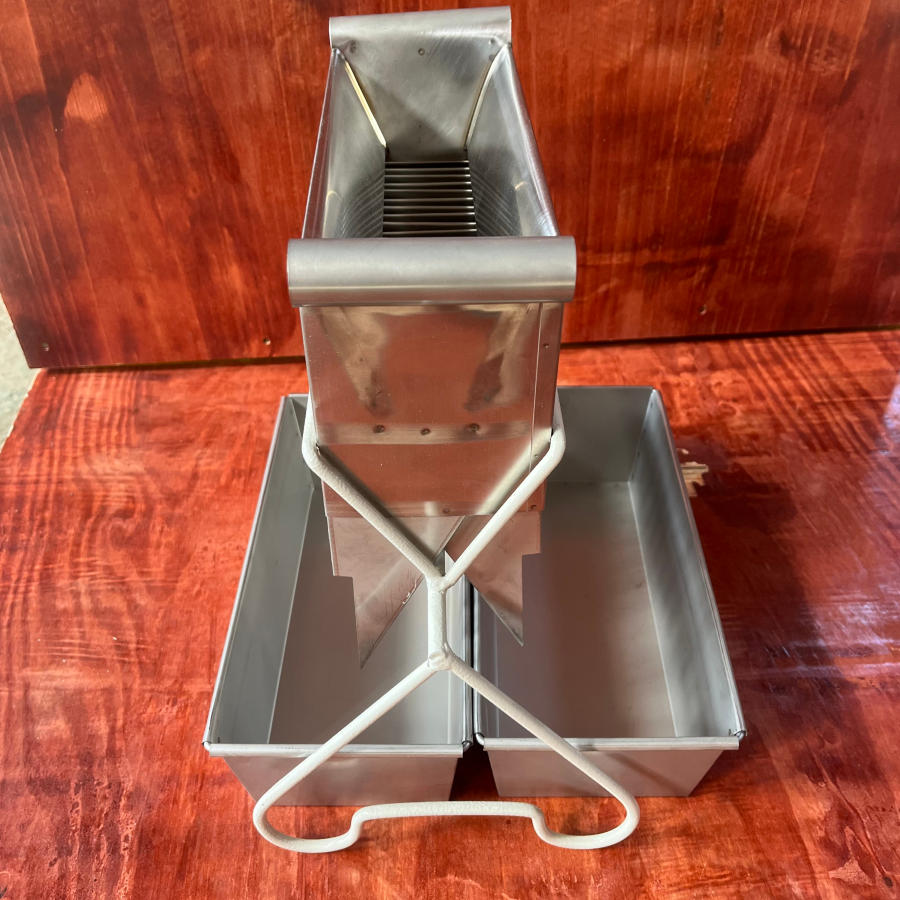

The Laboratory Riffle Sample Splitter is a simple, inexpensive unit with no moving parts to break or wear out and the advantages of the design of this unit are easily apparent over others of similar pattern
The Laboratory Riffle Sample Splitter is a simple, inexpensive unit with no moving parts to break or wear out and the advantages of the design of this unit are easily apparent over others of similar pattern. Division channels perform splitting and a final separation of the channel discharges into two representative parts is accomplished by having every other division channel deliver into the same receptacle. The division channels are steep enough to prevent clogging and are quickly and thoroughly cleaned.
Technical Parameter
| No | Groove number | Groove width (mm) | Splitting granularity（mm） |
| Type 1 | 16 | 32.5 | ＜13 |
| Type 2 | 18 | 15 | ＜6 |
| Type 3 | 24 | 7.5 | ＜3 |
| Type 4 | 32 | 5 | ＜1 |
