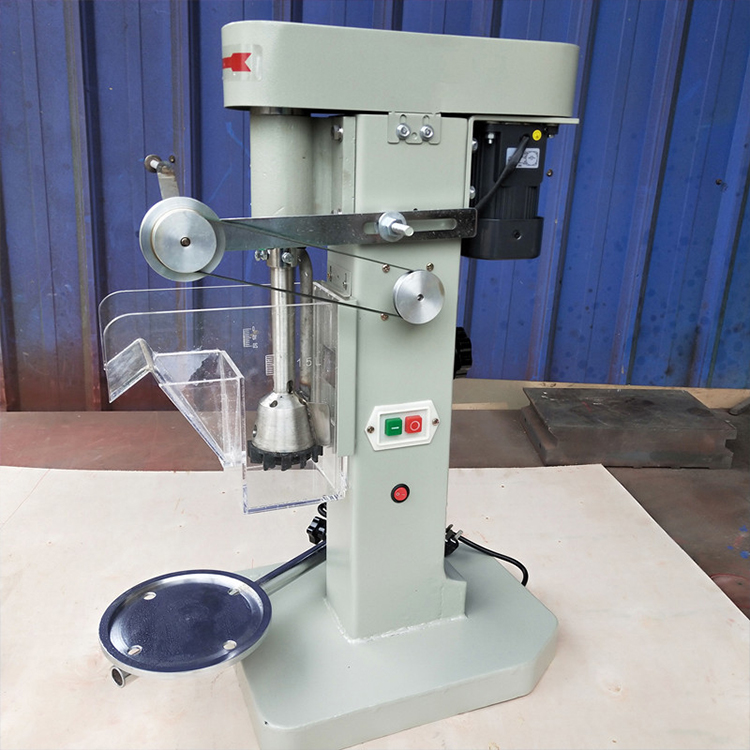

XFD series laboratory single cell flotation separator machine Applied in geology,metallurgy,building materials,chemical and other industrial laboratory flotation ore with a small amount
XFD series laboratory single cell flotation separator machine.Applied in geology,metallurgy,building materials,chemical and other industrial laboratory flotation ore with a small amount.
Main Features
1. Stable speed impeller;
2. Cheap;
3. 0.5/0.75/1/1.5/3 and 8 L cells available;
Technical Parameter
| Technical parameters | Model No | |||||
| XFDI-0.5 | XFDI-0.75 | XFDI-1.0 | XFDI-1.5 | XFDI-3.0 | XFDI-8 | |
| Groove Volume(Liter) | 0.5 | 0.75 | 1 | 1.5 | 3 | 8 |
| Rotary speed of impeller(r/min) | 2600 | 2600 | 2100 | 1910 | 1890 | 1400 |
| Impeller diameter(mm) | Φ45 | Φ45 | Φ55 | Φ60 | Φ70 | Φ100 |
| Rotary speed of scraper(r/min) | 30 | 30 | 30 | 30 | 30 | 30 |
| Feeding size(mm) | -0.2 | |||||
| Motor power(w) | 90 | 90 | 90 | 90 | 90 | 250 |
| Voltage | 220V/50Hz/Single phase | 380V/50Hz/Three phase | ||||
| Dimension(mm) | 380*310*680 | 380*310*680 | 440*310*760 | 440*310*760 | 440*310*820 | 650*400*900 |
| Weight(kg) | 26 | 26 | 32 | 32 | 50 | 78 |
