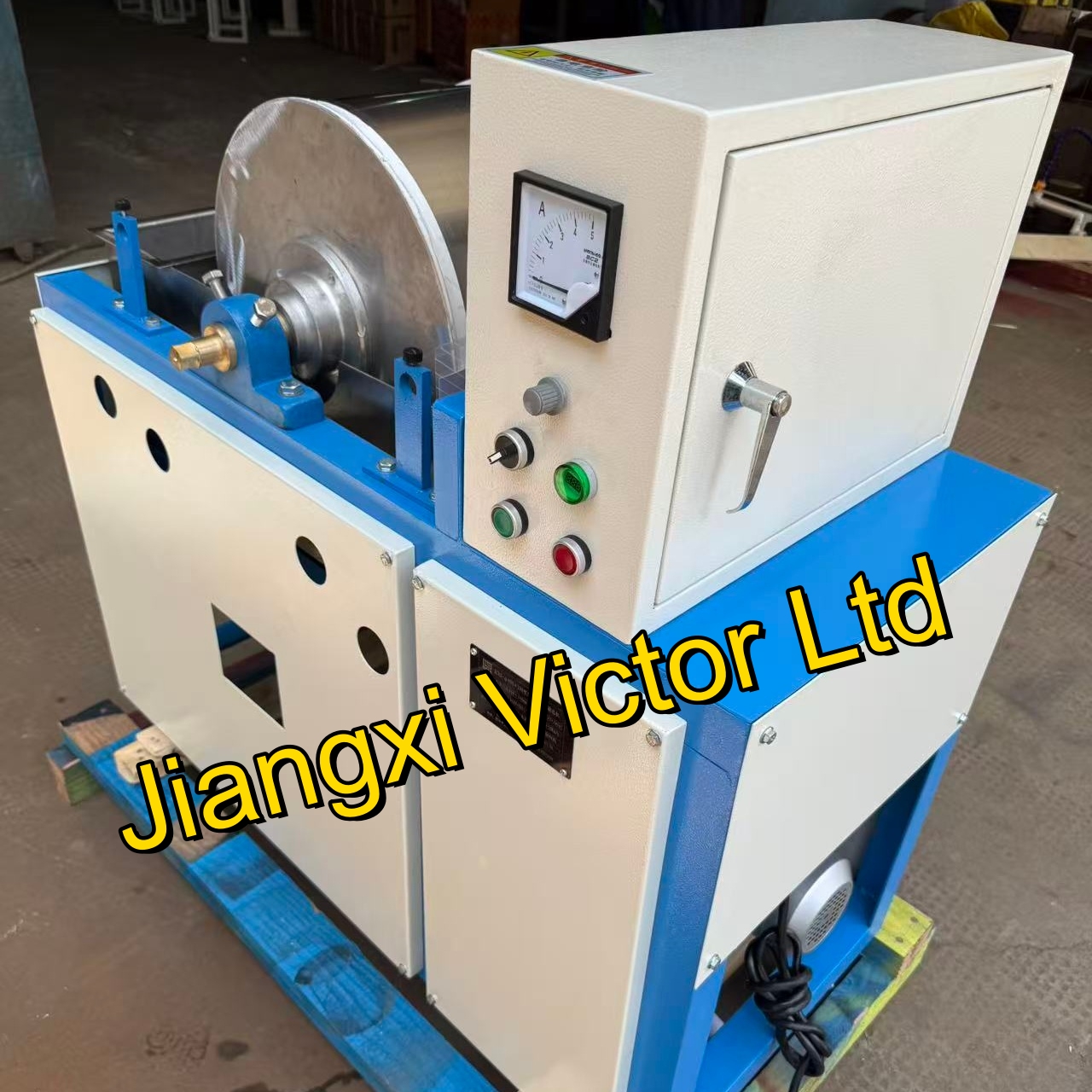

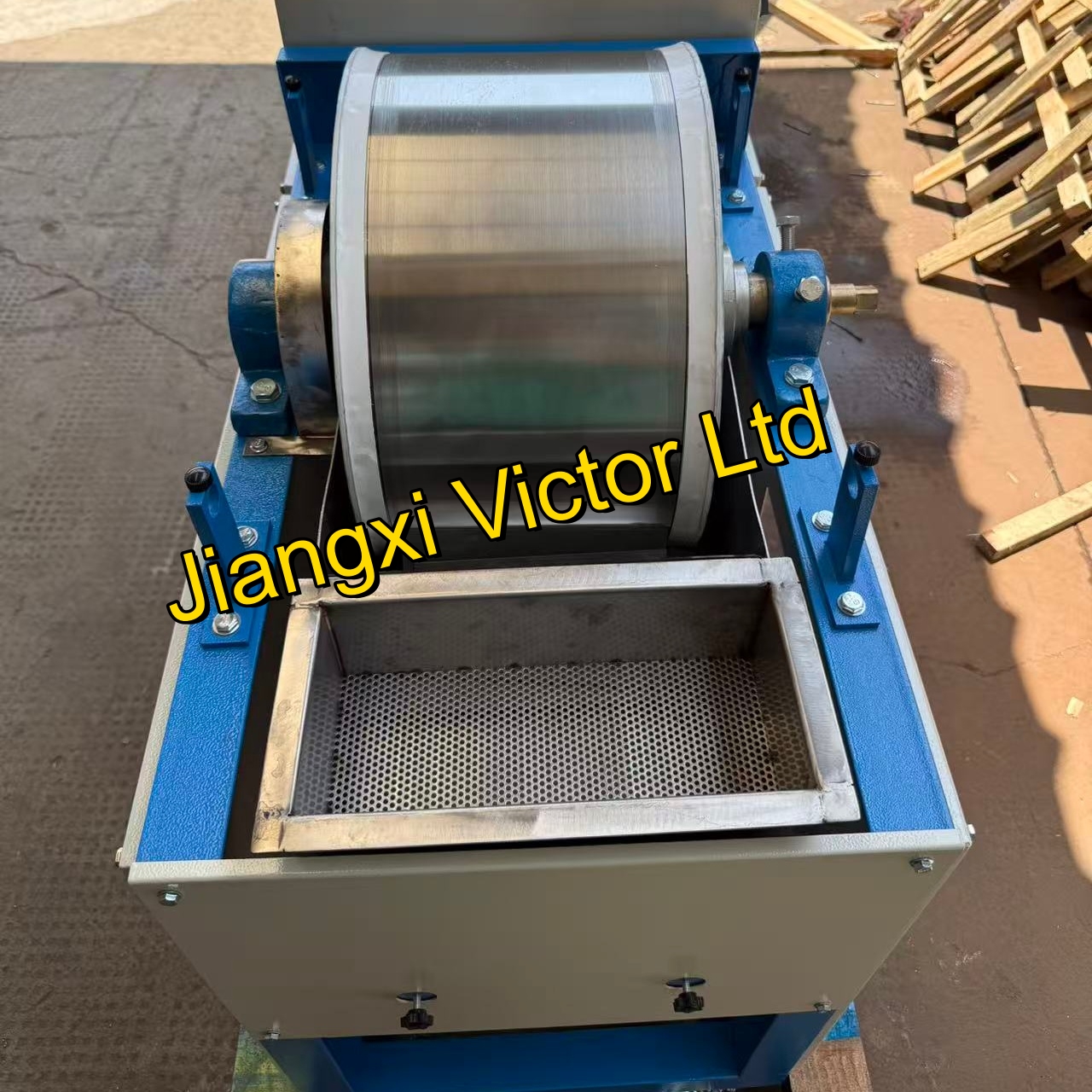

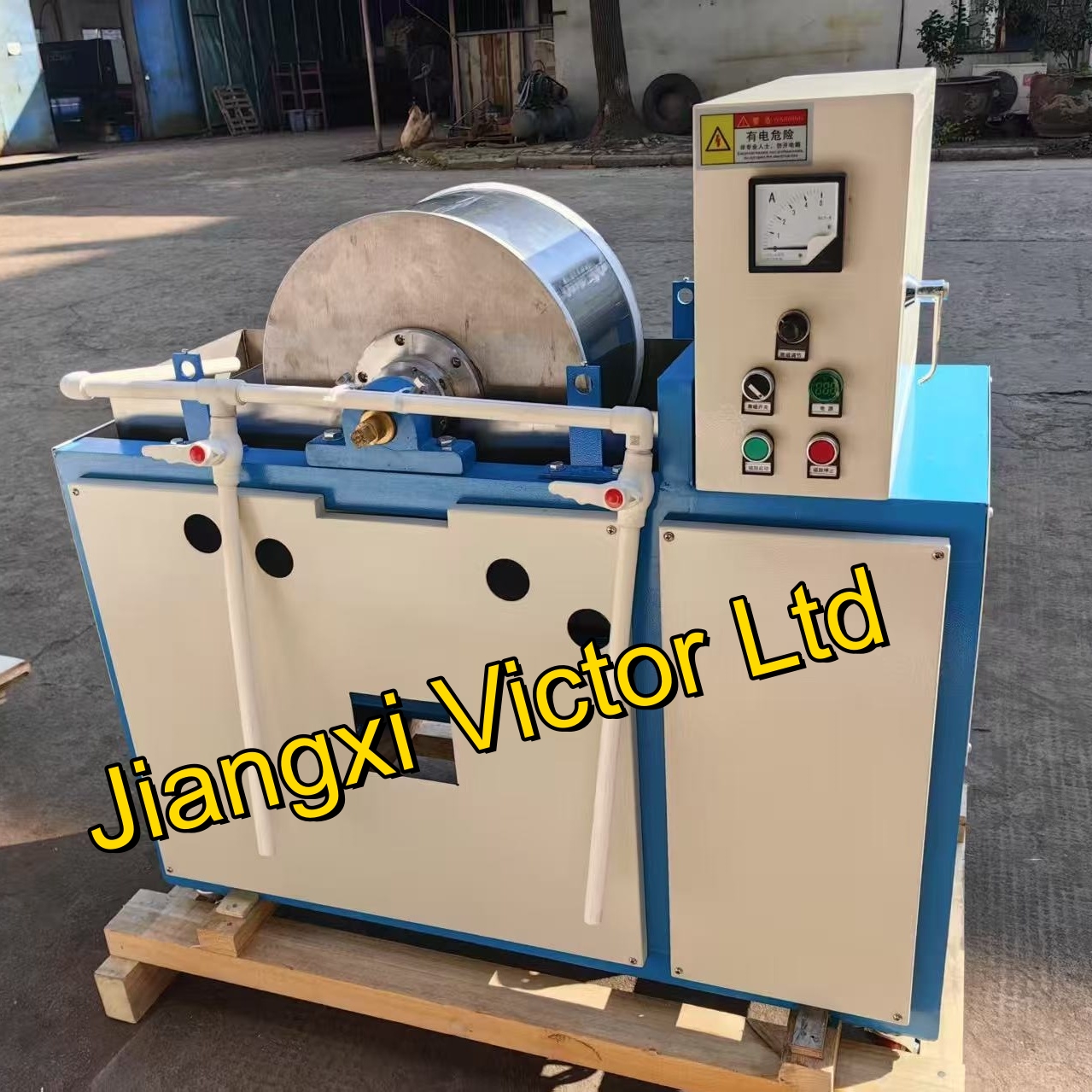

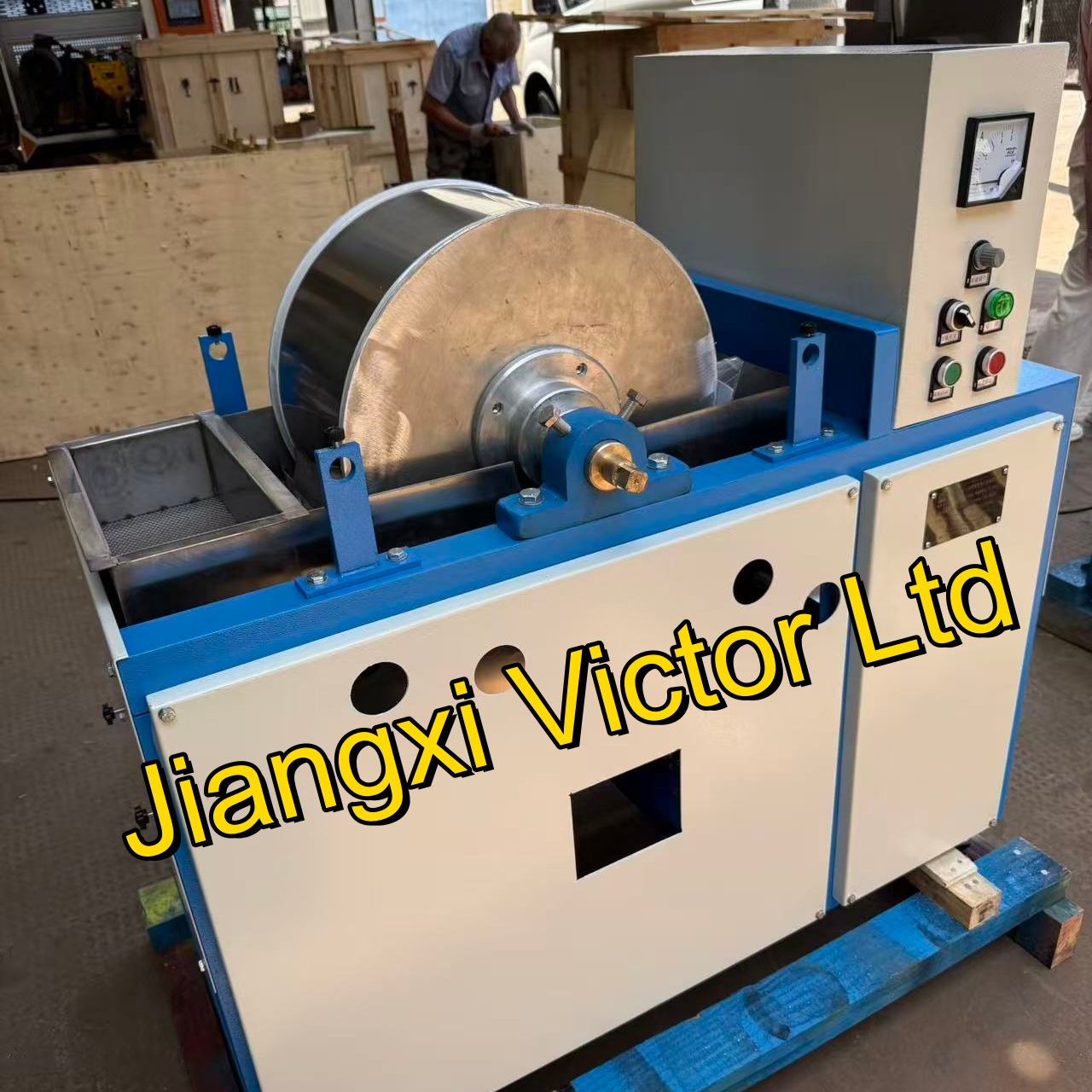

The XCRS400*240 wet drum magnetic separator is primarily used for small-scale unit tests, continuous experiments, or production of magnetic ores such as magnetite and roasted magnetite
The XCRS400*240 wet drum magnetic separator is primarily used for small-scale unit tests, continuous experiments, or production of magnetic ores such as magnetite and roasted magnetite.
This machine has two operating modes:
1. Co-current flow mode (this machine has this function):
Suitable for roughing or scavenging of coarse-grained, strongly magnetic minerals with a particle size of 6-0 mm.
2. Counter-current flow mode (this machine has this function):
Suitable for roughing or scavenging of fine-grained, strongly magnetic minerals with a particle size of 0.6-0 mm.
Technical Parameter
| No | Model No | CRS400*240 |
| 1 | Drum size | Φ400*240mm |
| 2 | Magnetic field intensity | 0-2600gauss |
| 3 | Drum Speed | 33r/min |
| 4 | Rated operating current | 0-4A |
| 5 | Temperature | ＜60℃ |
| 6 | Max feeding size | 2mm |
| 7 | Voltage | 380V/50Hz/Three phase |
| 8 | Motor Power | 0.37kw |
| 9 | Capacity | 20-50kg/h |
| 10 | Dimension | 1068*636*982mm |
| 11 | Weight | 200kg |
