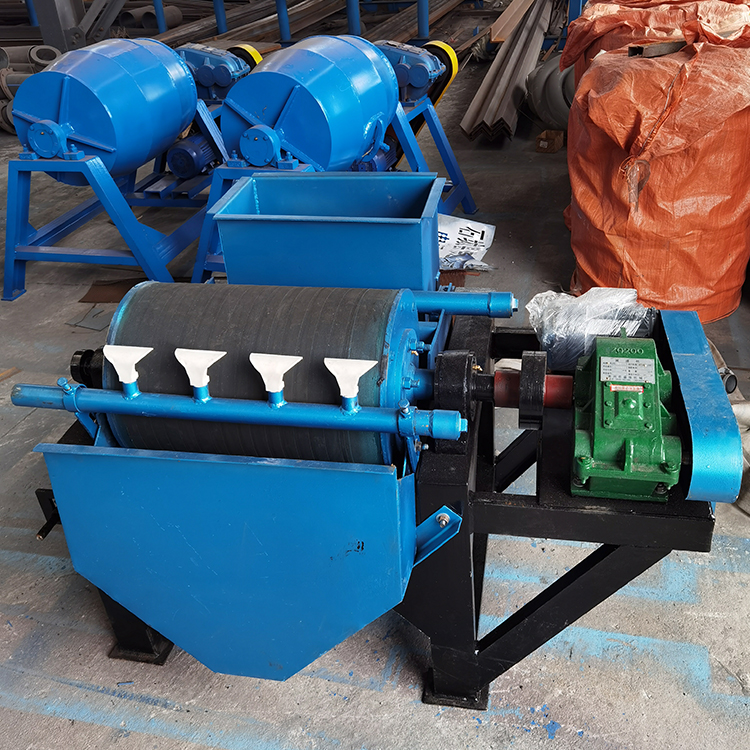

Wet Drum Magnetic Separator

Wet Drum Magnetic Separator is suitable for Mine, Coal preparation plant etc. use weak wet magnetic field to sort out the strong magnetic ore, or eliminating the strong magnetic minerals mixed in nonmagnetic minerals.

The minerals include magnetite, pyrrhotite, roasting ore, ilmenite and other materials with a particle size of 3mm or less. It is also used for iron removal of coal, non-metallic minerals, building materials, etc.

Features

1. Simple structure;

2. Easy-open structure,cleaning convenient;

3. Large capacity;

4. Magnetic intensity: Customized,800 to 9000 Gauss;

5. Easy to operate;

6. The number of axial magnetic can be adjusted in accordance with material characteristics;

7. Easy to maintain;

8. Low power;

9. Stainless steel machine and full-closed operation enable an easy clean;

Working Principle

When the ore pulp entering magnetic field area, the ferromagnetic materials are sucked up on the surface of the drum, weak magnetic substance and nonmagnetic minerals are washed away by water, the absorbed magnetic minerals on the surface of drum are rotated with the drum and taken out of magnetic field area .The rotary one is suitable to dry separate the fine particle strong magnetic ore, because of speedy rotation, the magnetic particle rolling more times than other magnetic separator, which is effectively destroy the reunite of magnetic and arise the high-grade ore, the ore are divide into magnetic and nonmagnetic after separation, and discharge from the own road. This machine is suitable for the roughing and cleaning of particle size in 0-6 mm size.
