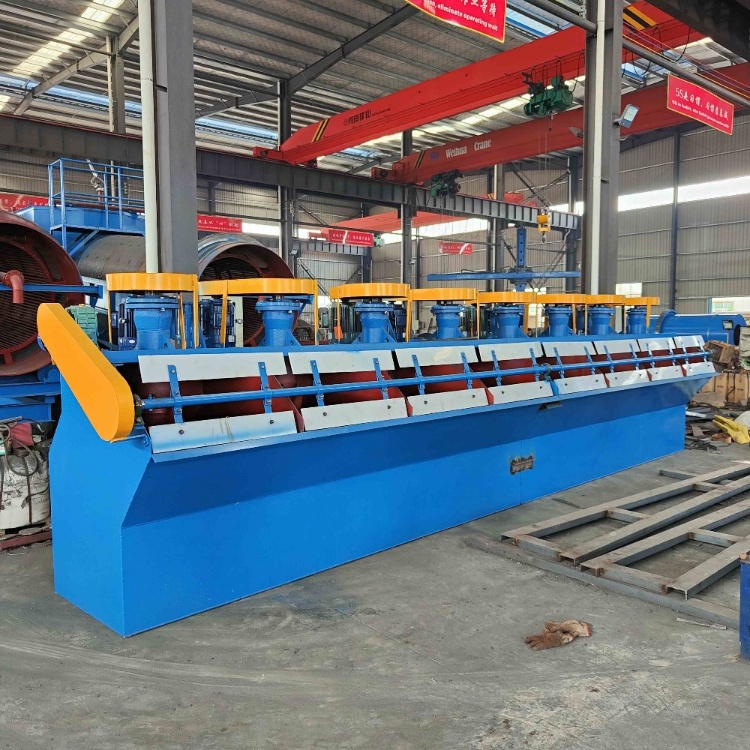

The flotation machine is mainly used for sorting non-ferrous metals such as copper, zinc, lead nickel and gold, and can also be used for rough selection and selection of ferrous and non-metal
The flotation machine is mainly used for sorting non-ferrous metals such as copper, zinc, lead nickel and gold, and can also be used for rough selection and selection of ferrous and non-metal. The motor is driven by the motors V-belt drive to rotate the impeller, which generates centrifugal force to form a negative pressure On the one hand, it absorbs sufficient air to mix with the slurry.
On the one hand, it mixes the slurry with the drug, and refines the foam to make the mineral bond foam Mineralized foam is formed on the slurry surface. Adjust the height of the shutter and control the liquid level so that the useful foam is scraped off by the scraper.
Main Features
1.Large air-absorption capacity
2.Less reagents consumption.
3.Low energy consumption.
4.Easy to maintenance and can be designed according to the users.
5.Increase concentrate grade of by 4-6%.
Technical Parameter
| Model | Effective volume (m²) | Capacity (m²/min) | Diameter of impeller(mm) | Impeller rotation (r.p.m) | Power of impeller (Kw) | Power of Scrapper (Kw) | Weight of each cell(Kg) |
| SF-0.37 | 0.37 | 0.2-0.4 | 300 | 352-442 | 1.5 | 0.55 | 470 |
| SF-0.7 | 0.7 | 0.3-1.0 | 350 | 336 | 3 | 1.1 | 970 |
| SF-1.2 | 1.2 | 0.6-1.2 | 450 | 312 | 5.5 | 1.1 | 1400 |
| SF-2.8 | 2.8 | 1.5-3.5 | 550 | 280 | 11 | 1.5 | 2120 |
| SF-4 | 4 | 2-4 | 650 | 235 | 15 | 1.5 | 2600 |
| SF-6 | 6 | 3-6 | 760 | 191 | 30 | 2.2 | 3000 |
| SF-8 | 8 | 4-8 | 760 | 191 | 30 | 1.5 | 4292 |
| SF-16 | 16 | 5-16 | 850 | 169-193 | 45 | 1.5 | 7415 |
| SF-20 | 20 | 5-20 | 730 | 186 | 30x2 | 1.5 | 9823 |
