Common magnetite beneficiation methods and their technological applications

Magnetite (Fe3O4) is a strongly magnetic mineral and an important component of iron ore resources. Due to its significant magnetic characteristics, magnetic separation is the core process for its beneficiation. Based on ore properties and grade differences, common magnetite beneficiation methods mainly include single magnetic separation and combined beneficiation processes.

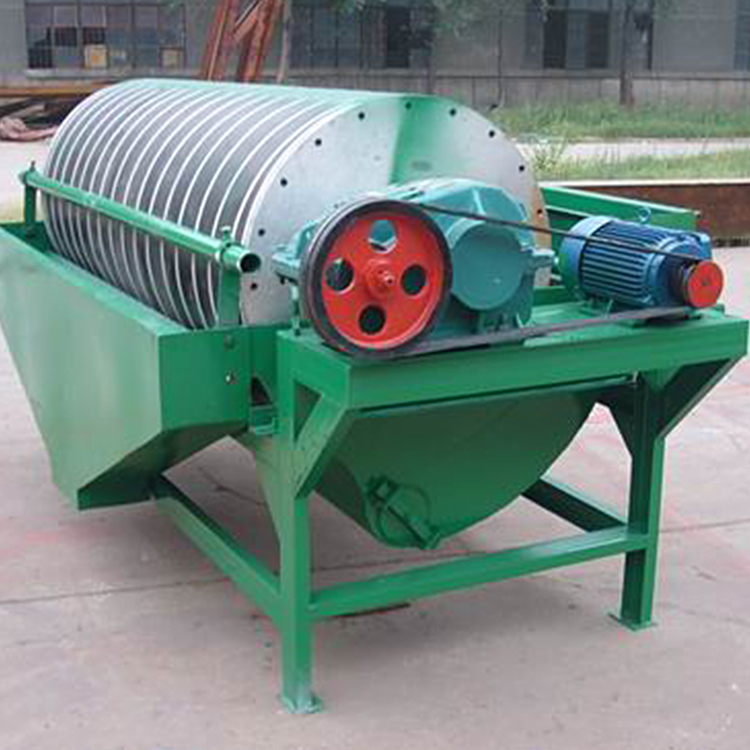

Single magnetic separation is suitable for high-grade magnetite with simple compositions. This process utilizes a weak magnetic field separator to efficiently recover magnetic mineral particles, resulting in a simple process and low cost. When the raw ore particle size is relatively coarse, dry magnetic separation is often used for pre-selection and tailings removal to reduce the burden on subsequent grinding; when the particle size is fine, wet magnetic separation is used to improve separation accuracy. For low-grade ores, staged grinding followed by staged magnetic separation can be implemented to avoid over-grinding and improve concentrate grade.

The combined process of weak magnetic separation and reverse flotation is suitable for complex and difficult-to-beneficiate ores. When magnetite is associated with silicates, carbonates, or sulfides (such as chalcopyrite and cobalt pyrite), magnetic separation alone is insufficient to obtain high-grade concentrate. At this stage, weak magnetic separation is first used to enrich iron minerals, followed by reverse flotation to remove gangue. Cationic reverse flotation uses starch to suppress iron minerals and amines to collect gangue, offering mild conditions and stable operation. Anionic reverse flotation, conducted under alkaline conditions, offers strong selectivity and effectively reduces silica content in the concentrate, improving iron concentrate quality.

With the development of magnetic separation equipment, new technologies such as high-gradient magnetic separation and superconducting magnetic separation are being applied, significantly improving the recovery rate of fine-grained minerals. Simultaneously, the introduction of digital twin and intelligent control technologies further enhances beneficiation efficiency and automation levels.

In summary, magnetite beneficiation should be tailored to the specific characteristics of the ore, rationally selecting the process flow to achieve efficient resource utilization and green sustainable development.
