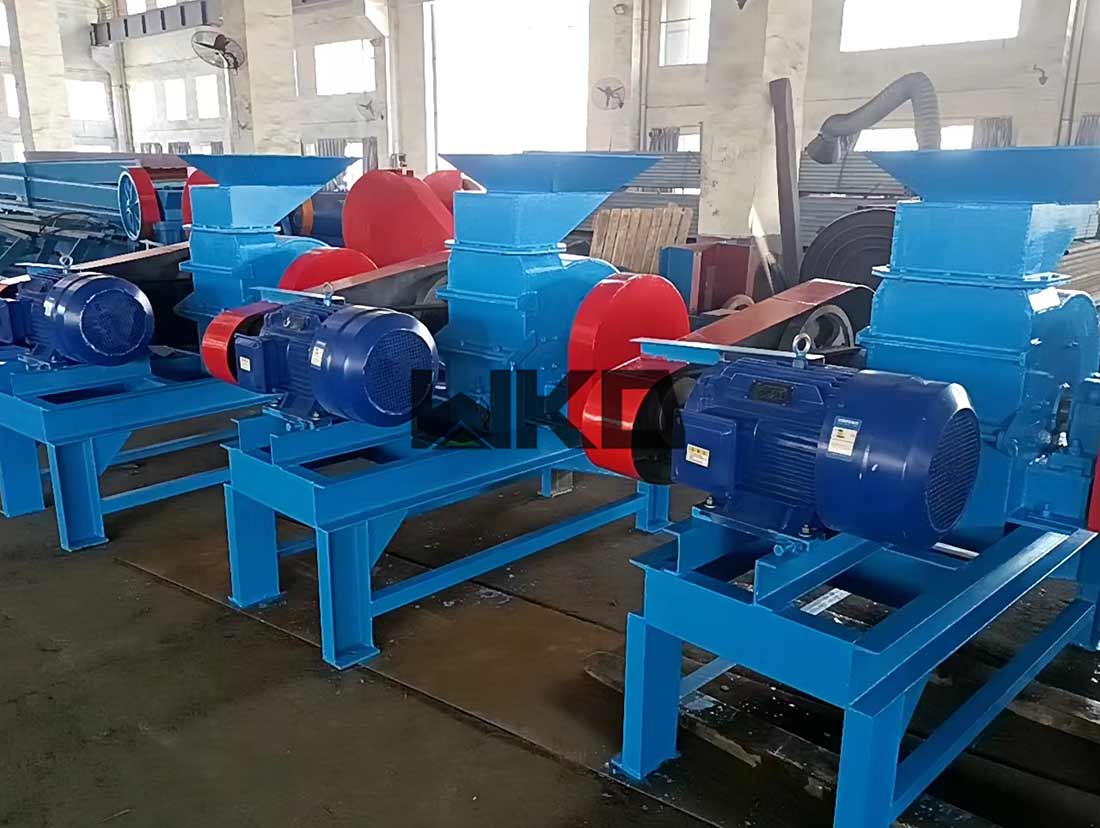

The hammer mill is an efficient and reliable crushing equipment that can efficiently crush various ores smaller than 50mm
The hammer mill is an efficient and reliable crushing equipment that can efficiently crush various ores smaller than 50mm. According to the process requirements, the material can be crushed to between 1 and 180 mesh. The finished product has a uniform particle size, is cubic in shape, and there is less over-crushing. The hammer mill can to some extent replace the ball mill and features easy installation, simple operation, and stable performance.
The hammer mill can be used for crushing operations of various ores such as iron ore, coal gangue, limestone, granite, pebbles, quartz stone, tin ore, tungsten ore, etc. The entire machine is compact in structure, light in weight, and low in energy consumption.
The hammer mill uses a copper core motor, which has strong power and low operating noise, and has a strong carrying capacity. Both the hammers and liners are made of high manganese steel alloy material, which has excellent wear resistance, long service life.
| Model | Capacity (t/h) | Feed Size (mm) | Output Size (mm) | Number of Hammers | Motor | Diesel Engine |
|---|---|---|---|---|---|---|
| 240*500 | 0.1-2 | ≤50 | 0.1-12 | 6 pcs | 5.5-15kw | 24 hp |
| 300*500 | 1.5-3 | ≤50 | 0.1-12 | 8 pcs | 11-18.5kw | 30 hp |
| 400*500 | 2-4 | ≤50 | 0.1-12 | 10 pcs | 15-22kw | 45 hp |
| 400*600 | 3-6 | ≤50 | 0.1-12 | 10 pcs | 18.5-22kw | 45 hp |
| 500*600 | 4-8 | ≤50 | 0.1-12 | 12 pcs | 22-30kw | 60 hp |
