A jaw crusher is a primary crushing machine that uses two jaw plates to compress and break large rocks into smaller pieces
A jaw crusher is one of the main types of primary crushers in a mine or ore processing plant. It reduces the size of large rocks by compressing them between a fixed stationary jaw and a moving swing jaw. The rock remains in the crushing chamber until it is small enough to pass through the gap at the bottom. Jaw crushers are renowned for their reliability and efficiency in heavy-duty applications.

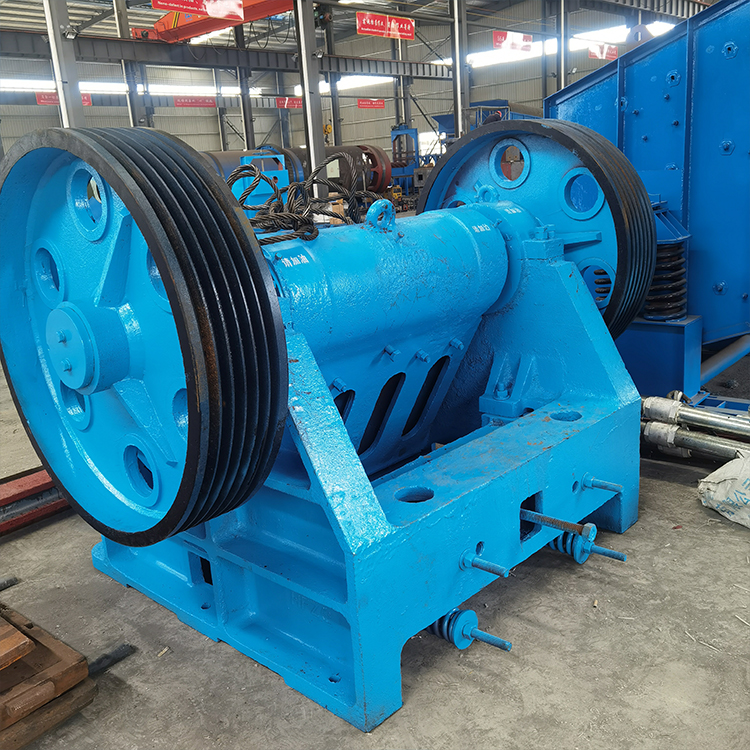

Jaw Crusher Picture
Jaw Crusher Technical Parameter
| Model | Feed opening (mm) | Max feeding size (mm) | Range of discharge (mm) | Capacity (t/h) | Power (Kw) | Weight (t) | Dimension(mm) |
| PE150*250 | 150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.6 | 720*660*850 |
| PE200*300 | 200*300 | 180 | 15-50 | 2-6 | 7.5 | 1 | 910*750*990 |
| PE250*400 | 250*400 | 210 | 20-60 | 3-13 | 15 | 2.8 | 1300*1090*1270 |
| PE400*600 | 400*600 | 340 | 40-100 | 15-40 | 30 | 5.7 | 1730*1730*1630 |
| PE500*750 | 500*750 | 425 | 50-100 | 20-70 | 55 | 10.3 | 1980*2080*1870 |
| PE600*900 | 600*900 | 520 | 65-130 | 50-150 | 75 | 15.5 | 2290*2290*2400 |
| PE750*1060 | 750*1060 | 630 | 80-140 | 80-220 | 110 | 28 | 2660*2430*2800 |
| PE900*1060 | 900*1060 | 685 | 230-290 | 160-400 | 110 | 33 | 2870*2420*2940 |
| PE1000*1200 | 1000*1200 | 850 | 195-265 | 315-500 | 110 | 55 | 3480*3876*3330 |
| PEX150*750 | 150*750 | 120 | 18-48 | 8-25 | 15 | 3.8 | 1200*1530*1060 |
| PEX250*750 | 250*750 | 210 | 25-60 | 13-35 | 30 | 5.5 | 1380*1750*1540 |
| PEX250*1000 | 250*1000 | 210 | 25-60 | 16-52 | 37 | 7 | 1560*1950*1390 |
| PEX250*1200 | 250*1200 | 210 | 25-60 | 20-61 | 45 | 8.5 | 2140*1660*1500 |
| PEX300*1300 | 300*1300 | 250 | 20-90 | 16-105 | 75 | 11 | 2720*1950*1600 |
