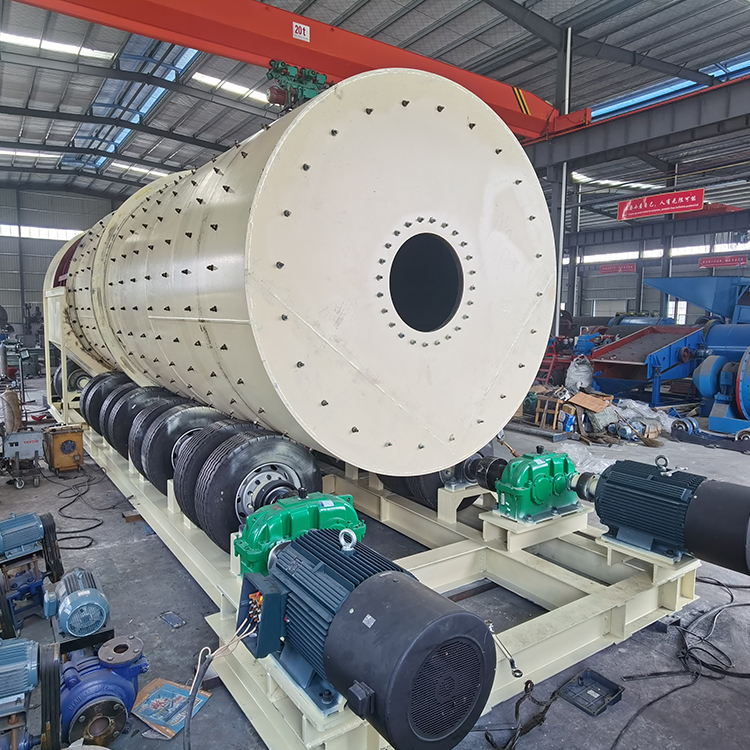

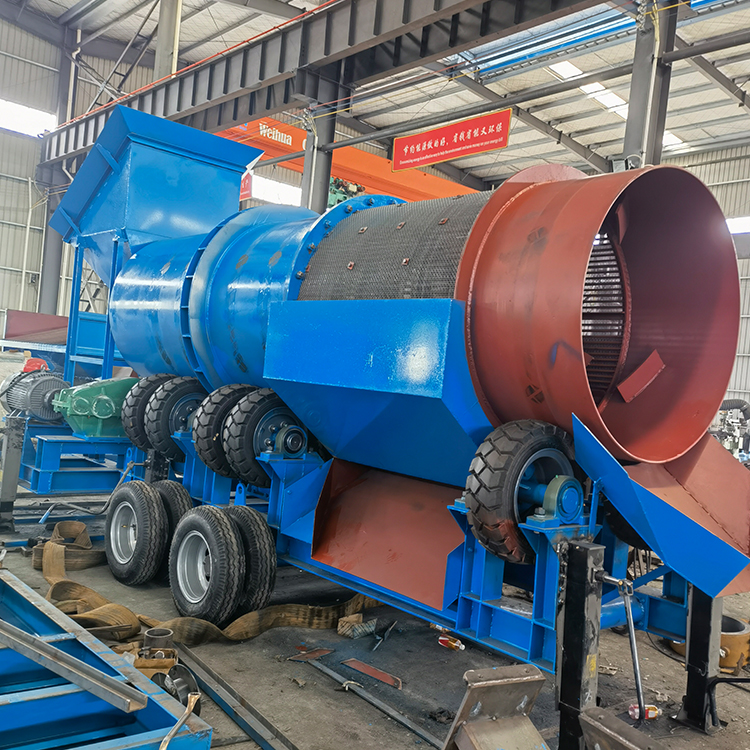

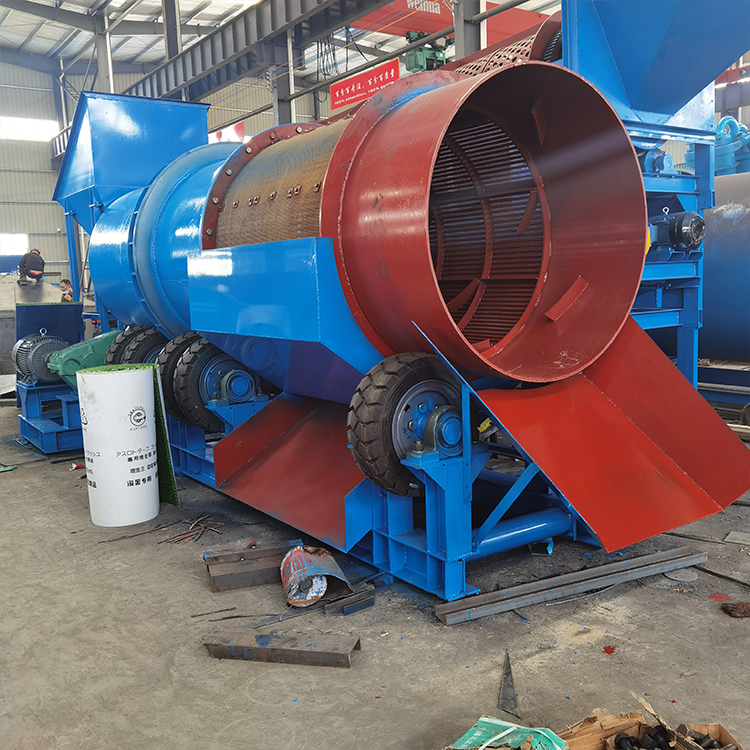

Rotary Trommel Scrubber washing machine is a main washing equipment in mining industrial, widely used for washing alluvial type sand type ores and stones, that with much sticky clay, with much good washing effect for clay
Rotary Trommel Scrubber washing machine is a main washing equipment in mining industrial, widely used for washing alluvial type/sand type ores and stones, that with much sticky clay, with much good washing effect for clay.
Advantages
1. Good function of washing clay, screening ores.
2. High production capacity ( can be from 1T/H to 200 T/H) & efficiency.
3. Low operating cost, easy maintenance and low noise.
4. The length & diameter of drum, screen mesh, layer quantity of screen can be customized.
5. Can operating with other mining machines.
6. Inside drum can lined with rubber plates or welded with steel material spiral plates.
7. Screen material can be PU or high mangansese steel or stainless steel.
8. With rubber tires driving, water spray pipes in side screen.
9. Can be with electic motor or diesel generator.
Technical Parameter
| Model | Drum Size (m) | Screen size (mm) | Feeding size (mm) | Water pressure (Mpa) | Every ton of ore water required (m/t) | Capacity (T/h) | Rotation speed (r/min) | Power (Kw) | Weigh (Kg) |
| RXT1030 | Φ1.0 * 3.0 | ≥ 5 | ≤ 100 | 0.4 - 0.5 | 1.5 - 4 | 30 - 50 | 25 - 28 | 15 | 4800 |
| RXT1230 | Φ1.2 * 3.0 | ≥ 5 | ≤ 100 | 0.4 - 0.5 | 1.5 - 4 | 50 - 70 | 23 - 25 | 18.5 | 5800 |
| RXT1545 | Φ1.5 * 4.5 | ≥ 5 | ≤ 150 | 0.4 - 0.5 | 1.5 - 4 | 70 - 120 | 18 - 22 | 30 | 6900 |
| RXT1560 | Φ1.5 * 6.0 | ≥ 5 | ≤ 150 | 0.4 - 0.5 | 1.5 - 4 | 80 - 130 | 18 - 22 | 37 | 8300 |
| RXT1845 | Φ1.8 * 4.5 | ≥ 5 | ≤ 170 | 0.4 ~ 0.5 | 1.5 - 4 | 90 - 130 | 20 - 21 | 45 | 11800 |
| RXT1860 | Φ1.8 * 6.0 | ≥ 5 | ≤ 170 | 0.4 - 0.5 | 1.5 - 4 | 100 - 140 | 20 - 21 | 45 | 12800 |
| RXT2060 | Φ2.0 * 6.0 | ≥ 5 | ≤ 210 | 0.4 - 0.5 | 1.5 - 4 | 120 - 160 | 19 - 20 | 55 | 14800 |
| RXT2265 | Φ2.2 * 6.5 | ≥ 5 | ≤ 230 | 0.4 - 0.5 | 1.5 - 4 | 160 - 180 | 19 - 20 | 55 | 16500 |
